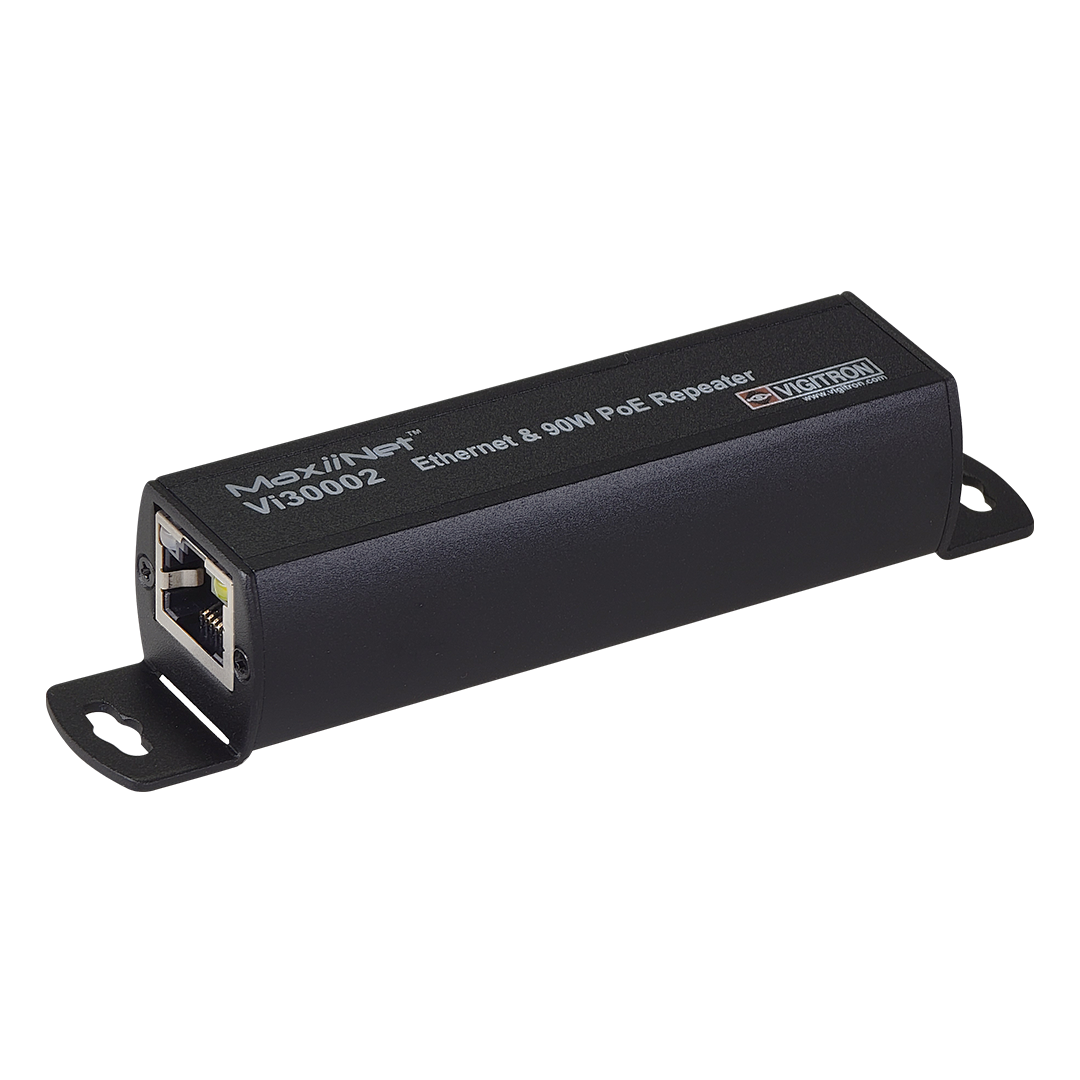

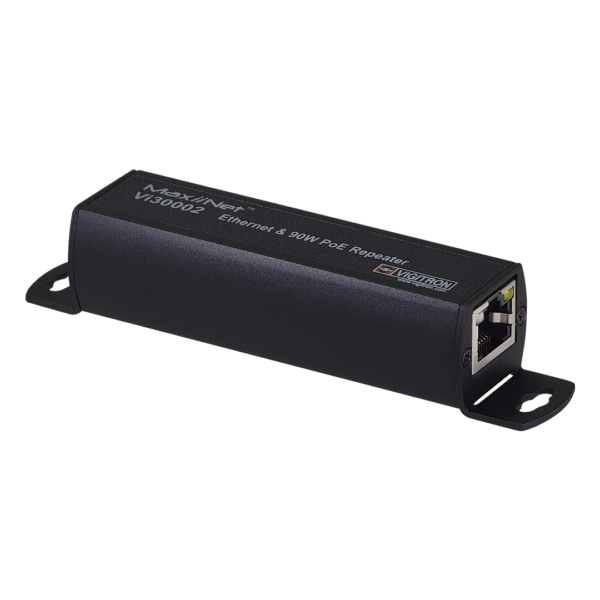

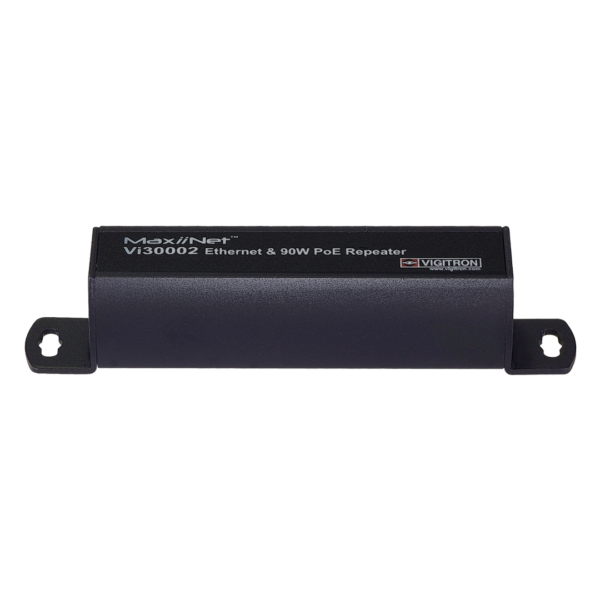

The Vi3002 is an Ethernet and 60W PoE repeater that provides a cost effective method for increasing distances beyond the Ethernet limit of 328 feet (100m) for IT or CCTV applications. Each unit can extend Ethernet and PoE for 328 feet (100m). Multiple units can be cascaded to reach the desired distances. The Vi3002 is a high performance device that meets the demand for the highest PoE powered PTZ domes and LED lighting eliminating the need for local power. It is IEEE 802.3bt compliant up to 60W PoE.
The Vi3002 is extremely compact in size and can be easily installed in the smallest environments such as wire conduits and weather-proof enclosures. Removable mounting brackets make installation an easy process. The Vi3002 is the perfect solution for any IP transmission application. Up to 8 units can be combined to achieve a distance of 2,950 feet (900m) for IP video, PoE, and data
transmission.
The Vi3002 is powered by PoE only and requires no external power supply. It is an ideal solution for extending data, IP video, and PoE from PoE switches, Midspans, and Power Source Equipment (PSE).
Features:
Specification | |
Electrical | |
PoE Standard | 802.3af (15.4W), 802.3at (30W), 802.3bt (60W) |
Network Connection | 2 x RJ-45 IEC 60603-7 |
Wiring Support | 2 or 4 pair Cat 5/5e/6 |
Power Consumption | 1W (using PoE) |
PoE | IEEE 801.3af/at/bt Compliant up to 90W |
LED | PoE: Green Link and Traffic: Orange |
Data Rate | 10/100Base-TX (10/100Mbps), Auto configuring |
Data Interfaces and | RFC 768 UDP, RFC 2068 HTTP |
Compliances | RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission 802.3af, 802.3at, 802.3bt |
Regulatory | |
NEC Code | For 3, 3 ½, and 4 inch Conduit at 40% Fill |
Safety | CE, FCC |
Environmental | RoHS, WEEE |
Environmental | |
Humidity | 0% to 95%, non-condensing |
Temperature | Operating: -40°C to 75°C Storage: -40°C to 85°C |
Mechanical | |
Dimensions | 0.9x1.0x2.7 in., 2.3x2.5x6.9 cm (HxWxL) (without tabs) |
Weight | 0.01 lb (4.5g) |
Housing Material | Extruded Aluminum |
