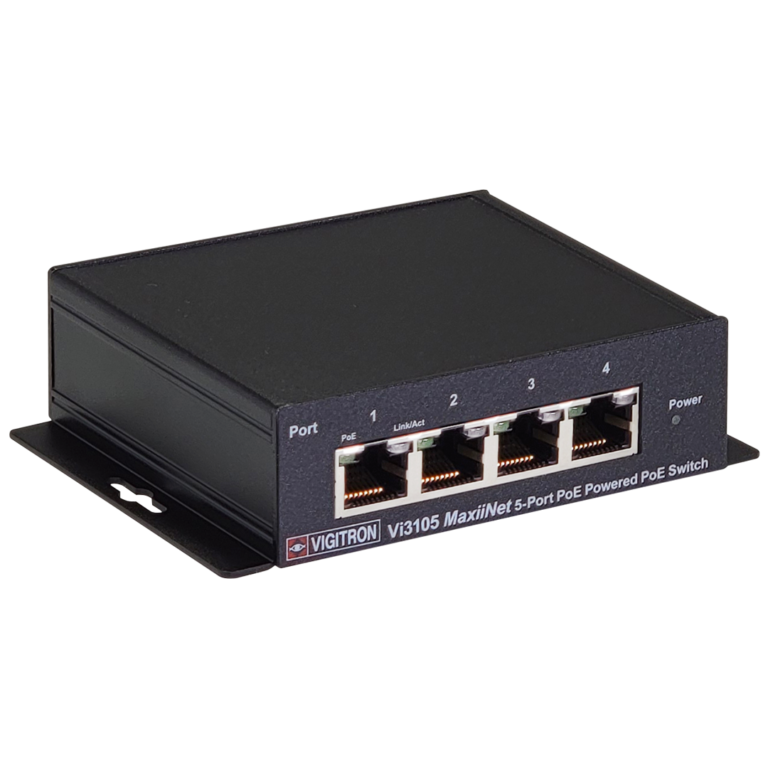

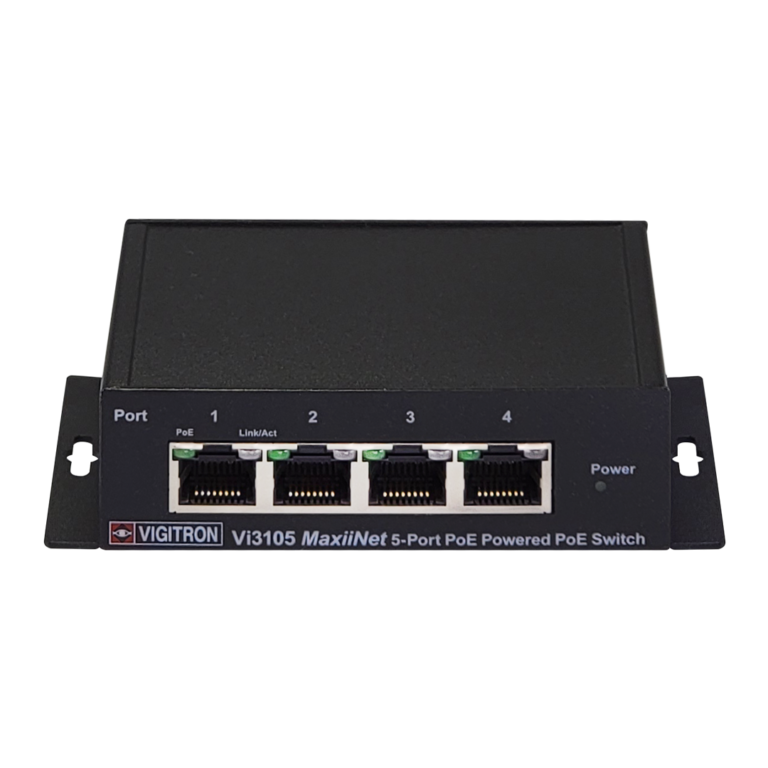

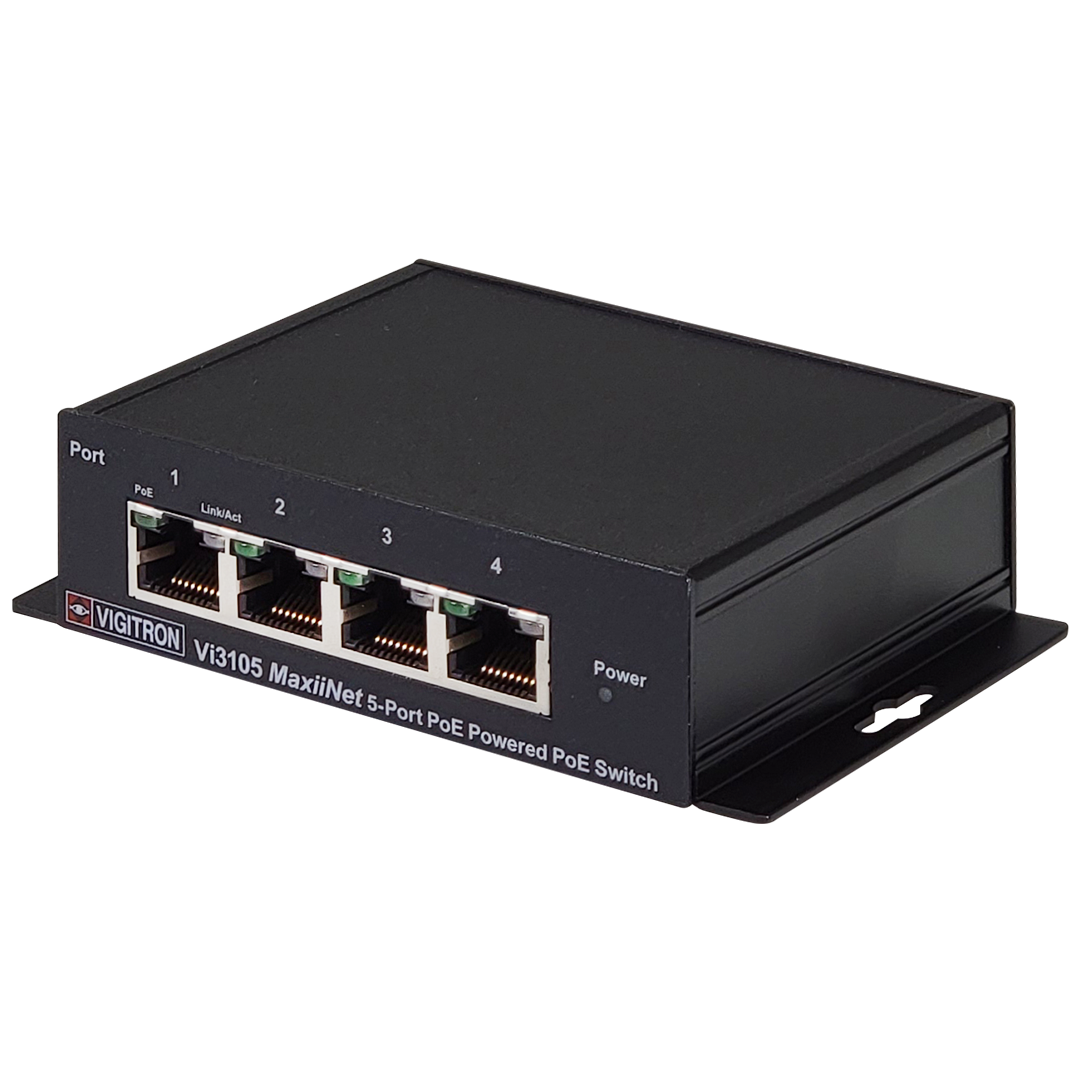

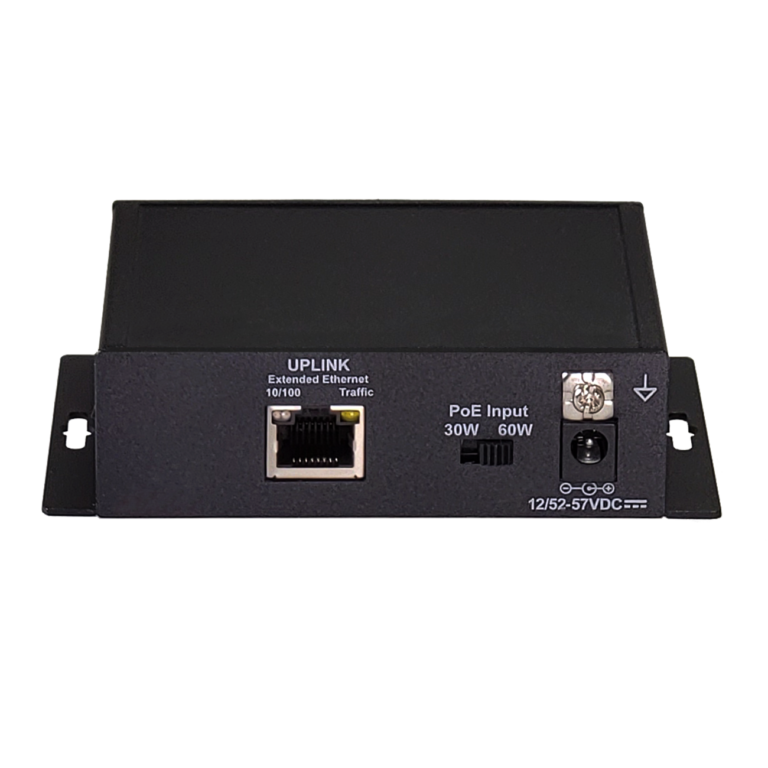

Vigitron - Vi3105 - 5-Port MaxiiNet™ PoE Powered PoE Switch, Extended UTP Uplink
Part number:
Vi3105
Price:

Vigitron’s MaxiiNet Vi3105 fixed managed 5-port PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet.



The Vi3105 can be powered by PoE sources up to 74W over extended UTP uplink or locally by the Vi1120 120W power supply to provide up to 37W to each port or up to 74W form two combined ports. With an operating temperature range of -30°C to 75°C, the Vi3105 is the perfect solution for data and power transmission for aplications such as warehouses, parking lots, campuses, casinos. The Vi3105 is MegaPixel Certified (MPC), type tested to network packet performance standards to assure you an error free and quality operation. Fixed managed L2 functions includes 802.1p QoS, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.



Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet Vi3105 an ideal solution for IP video and PoE transmission.



Features:

  • 5-port fixed managed layer 2 PoE switch with extended distance UTP uplink
  • Can be powered from a remote PoE source to provide PoE power to the switch and all 4 ports
  • Up to 37W PoE per port, capable of combining 2 ports for up to 74W
  • Transmits up to four cameras on a single UTP
  • The switch itself can be powered from a remote PoE source for up to 3,000 ft. when output PoE is not required
  • Intelligent power sensing automatically allocates port power based on the number of connected ports and individual camera power requirements
  • Automatic PoE port priority allocation
  • Over current shut down protection if allocated PoE budget is exceeded
  • Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
  • Hardened tested for -30°C to +75°C operating temperature range
  • Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
  • Provides full Layer 2 network switch functionality
Electrical-
Ethernet InterfaceStandard 10/100BaseT
UTP100 Ohm +/- 20%, up to 3,000 ft. (914m)
Power SourcePoE: 802.3af (15.4W), 802.3at (30W), 74W UPoE compliant
External Power Supply: 57VDC @ up to 120W or
12VDC @ 0.3A for non-PoE operation
Status LEDsPower: Power On
Ethernet: Traffic, Link
PoE: PoE present
ConnectorsEthernet Interface: 5 x RJ-45 connector
Power: Circular power connector
RFC2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
PoE CompatibilityIEEE 802.3af, IEEE 802.3at,60W High Power PoE
Regulatory-
FCCPart 15, Subpart B, Class B 2010
EmissionsEN5502:2006+A1:2007
EN 61000-3-2:2006+A1:2009+A2:2009
EN 55024: 1998+A1:2001+A2:2003
SafetyCE
EnvironmentalRoHS, WEEE
Environmental-
Humidity0 to 95%, non-condensing
TemperatureOperating: -30°C to +75°C
Storage: -40°C to +85°C
Mechanical-
Dimensions1.2x3.17x3.76 in., 30.48x80.52x95.50 mm (HxWxL)
Weight0.64 lb (290 g)
HousingAluminum
