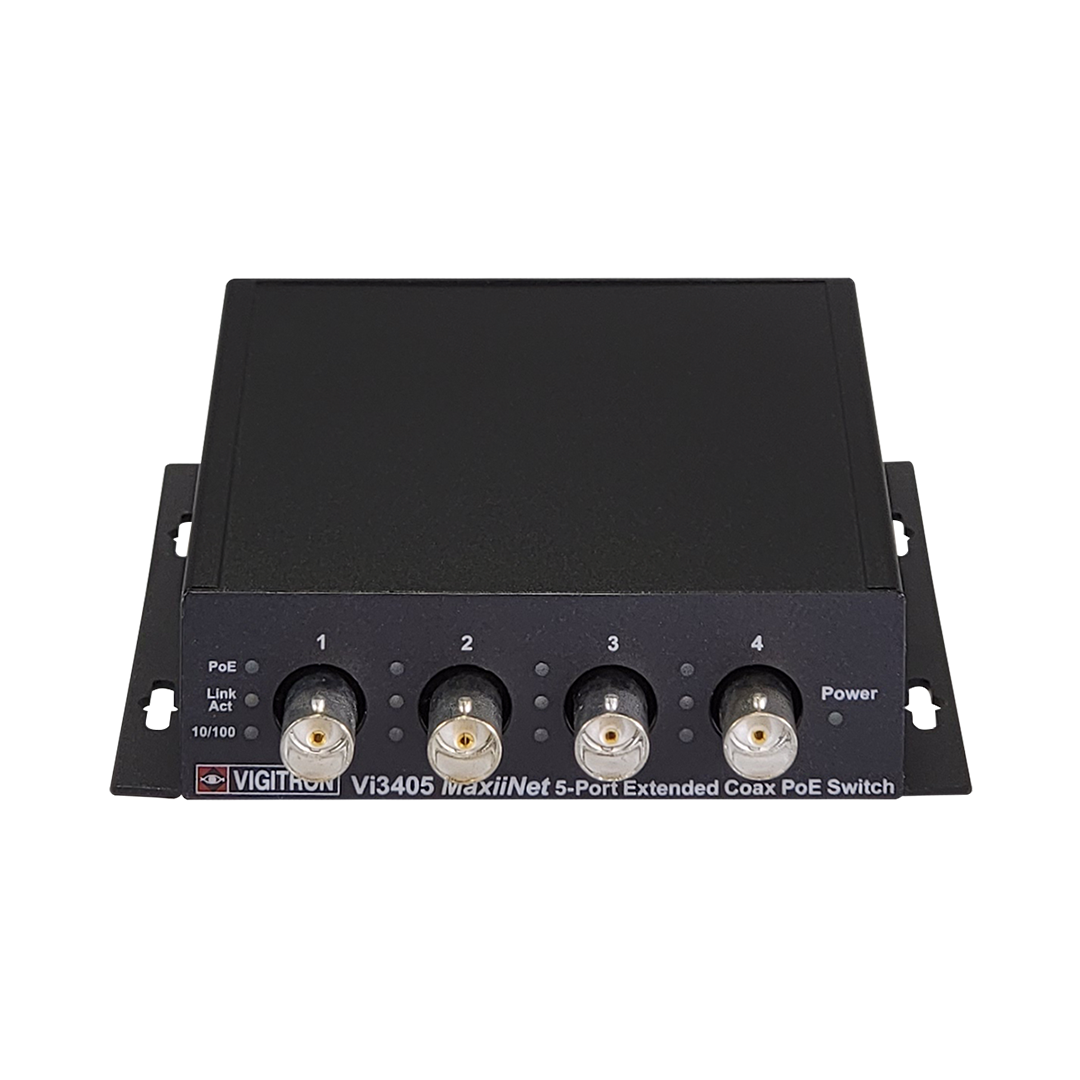

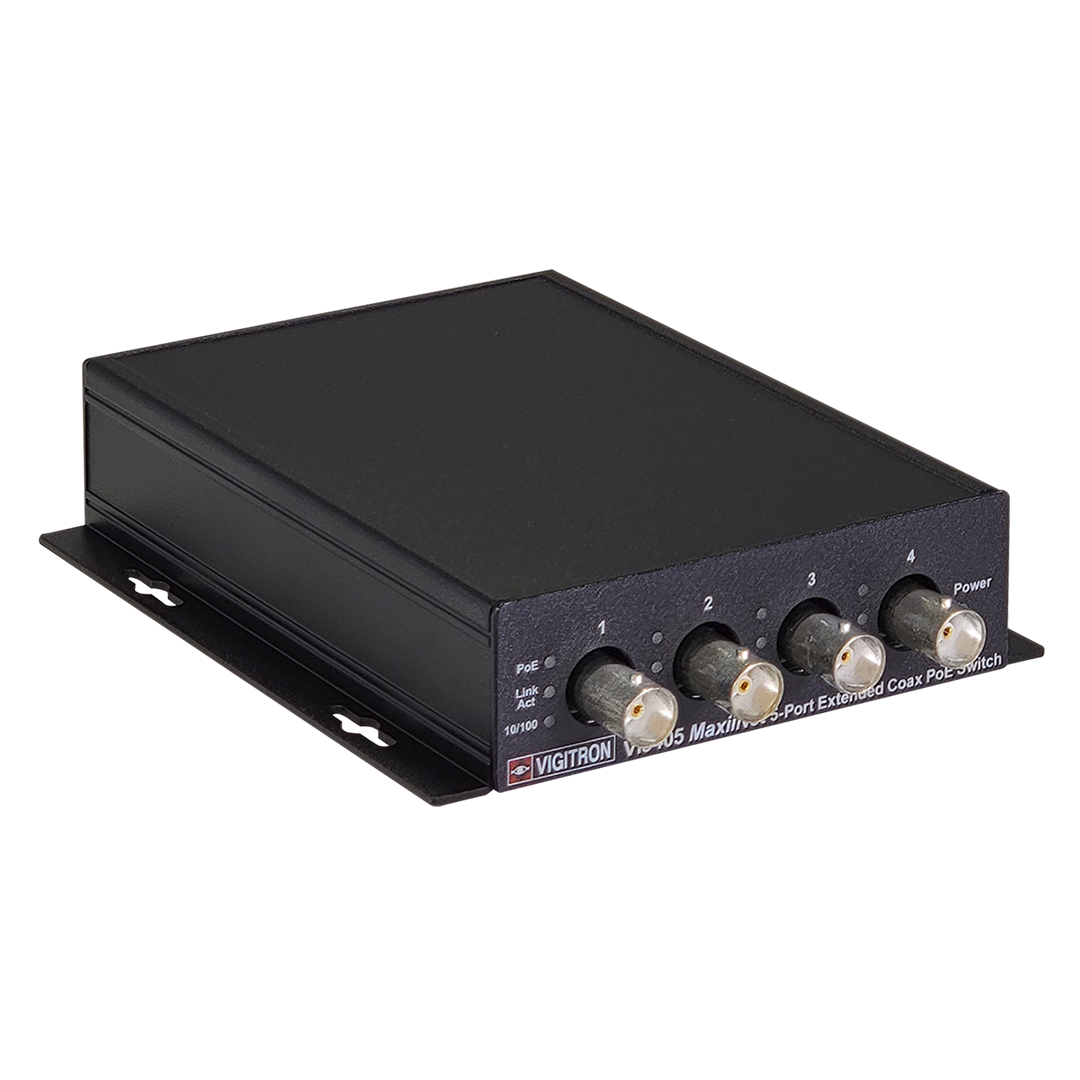

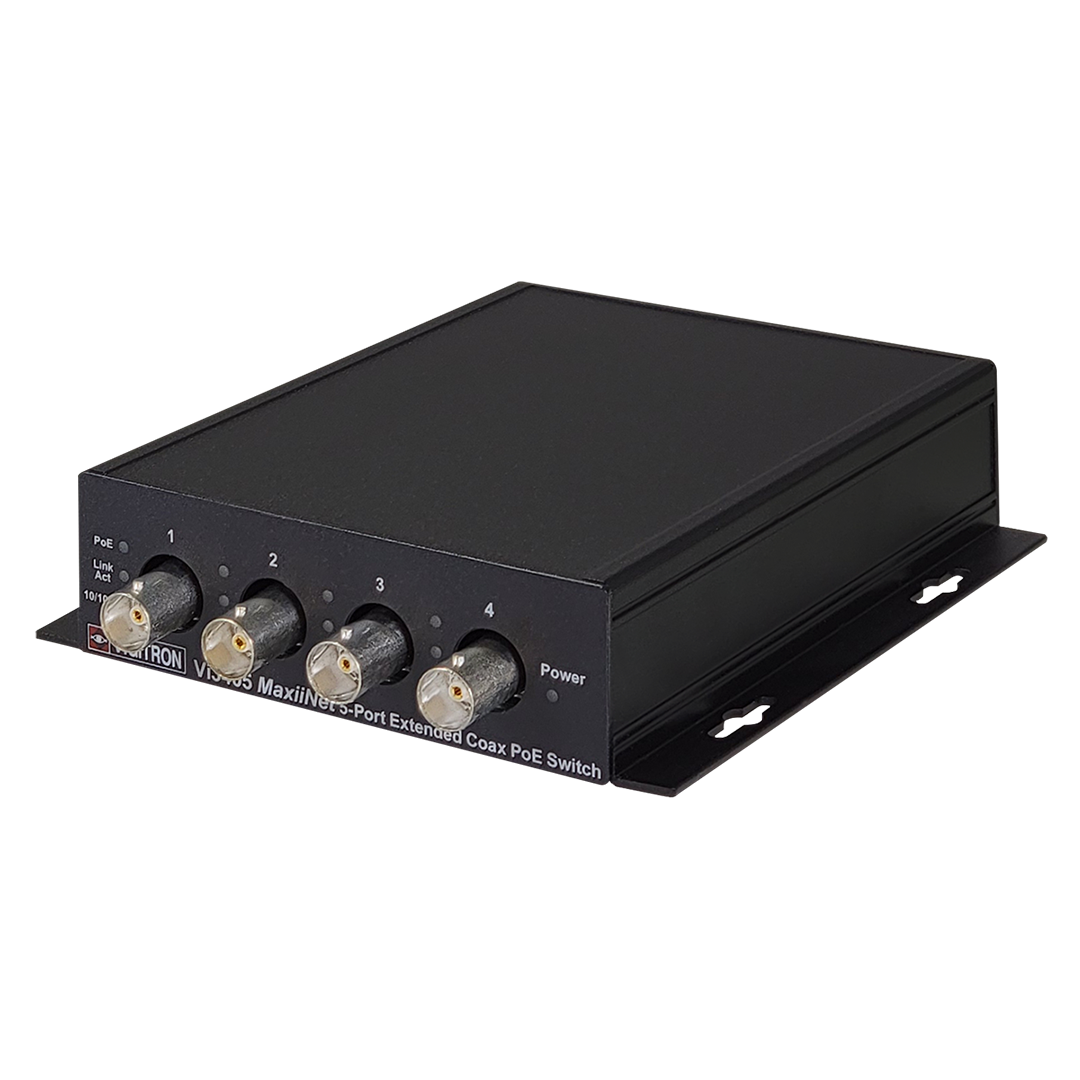

Vigitron - Vi3405 - 5-Port MaxiiNet™ Extended Coax PoE Switch, Standard Uplink
Part number:
Vi3405
Price:

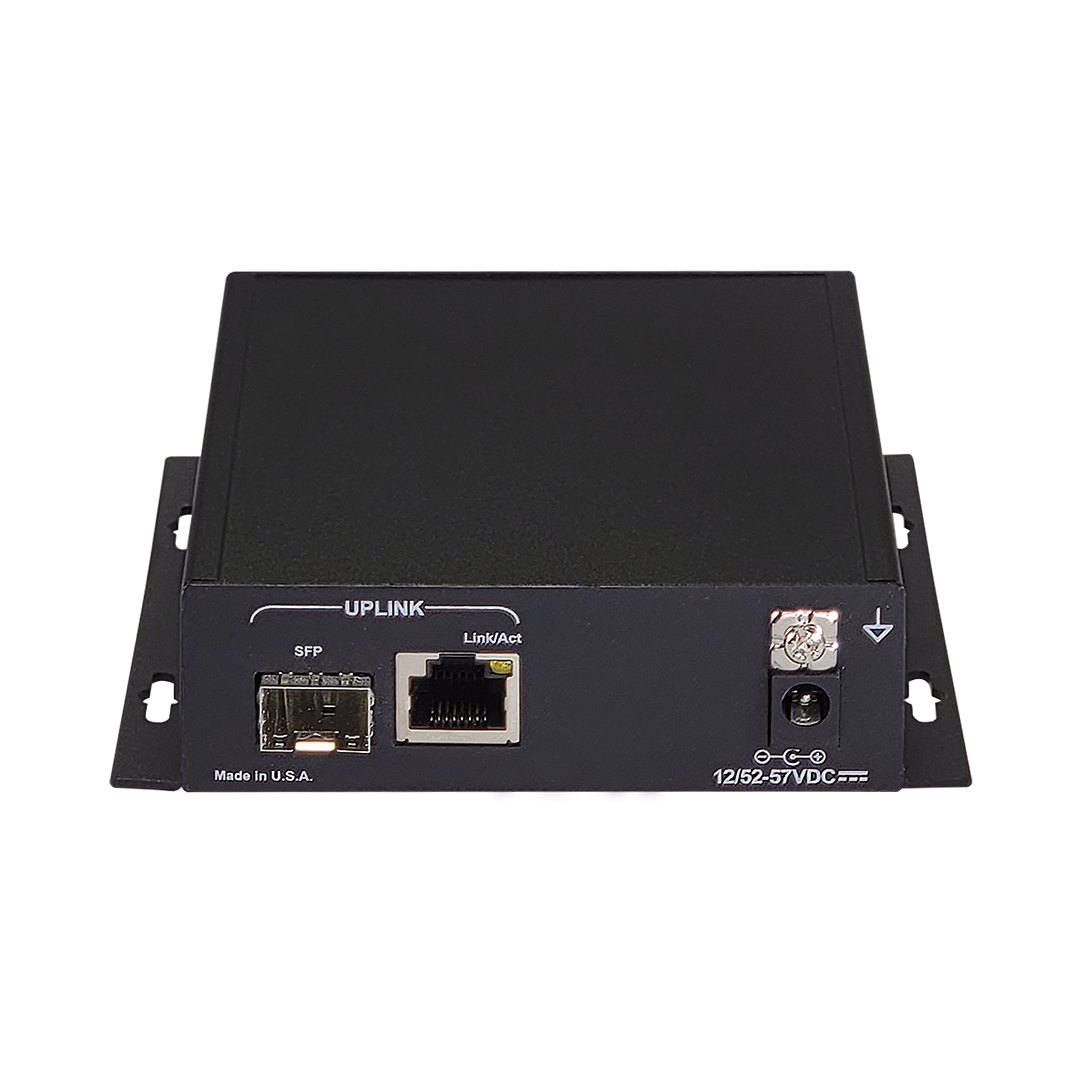

Vigitron’s MaxiiNet Vi3405 fixed managed five port extended Coax PoE switch brings new performance standards to the growing need for high speed transmission of high speed Ethernet. It eliminates the need for local power for the cameras connected to its 4 ports at extended distances. The Vi3405 provides a 100Base-T and an SFP socket for fiber optic uplink.



The Vi3405 is powered locally by the Vi1120 to supply 802.3at to each port, providing up to 37W (802.3at) to each port. The Vi3405 can operate over Coax cables at extended distances up to 1,800 feet (548m) when combined with the Vi2401A or Vi2400A.



With an operating temperature range of -30°C to 75°C, the Vi3405 is the perfect solution for data and power transmission for warehouses, parking lots, campuses, casinos, and many more. The Vi3405 is MegaPixel Certified (MPC), type tested to network packet performance standards, and major manufacturer compatibility tested to assure you error free, quality operations. Fixed managed L2 functions include 802.1p Qos, support of 2k MAC addressing, learning, aging, and a non-blocking switch fabric.



Installation cost savings, proven performance, and major camera manufacturer compatibility all go into making Vigitron’s MaxiiNet Vi3405 an ideal solution for standard distance data and power transmission.



Features:

  • 5-port extended distance Ethernet over coax Layer 2 PoE switch
  • 4 extended Coax ports with PoE and IP video at extend distances up to 1800 ft. (548m)
  • Provides PoE power at the camera site without the need for local power source or power supply at extended distances when used with Vi2401A or Vi2400A
  • Provides up to 37W PoE per port
  • Provides MSA compliant SFP fiber output port for integration to existing fiber infrastructures and extreme long distance up to 80Km
  • Automatic PoE port priority allocation and power management
  • Provides over current shut down protection
  • Certified (MPC) high data rate for virtual loss free transmission of cameras
  • Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
  • Type tested for -30°C to +75°C operating temperature range
  • Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP, HTTP/HTTPS
  • Provides full Layer 2 network switch functionality

Electrical



Ethernet Interface

Standard 10/100Base-T

Uplink

UTP: 100 Ohm +/- 20%, up to 328 ft. (100m)
Fiber Optics: will depend on the type SFP and Optical cable

Data Ports

Coax: 75 Ohm, 5,000 feet (1,515 m) at 10Base T
1,800 feet (549 m) at 100Base-T

Power Source

External Power Supply 57VDC @ up to 120W

Status LEDs

Power
Ethernet: Traffic, Link
PoE Active

Connectors

Fiber: MSA compliant SFP socket
Ethernet Interface: 1 x RJ45
Extended Ethernet Interface: 4 X BNC
Power: Circular power connector

Data Interface and
Compliances

2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet

PoE Compatibility

IEEE 802.3af, IEEE 802.3at up to 36W

Data Interfaces & Compliances

RFC 768 UDP, RFC 2068 HTTP
RFC 793 TCP, RFC 791 IP
RFC 1783 TFTP, RFC 894 IP over Ethernet
RFC 2544 TCP/IP Packet Transmission
IEEE802.3af, 8IEEE02.3at

IEEE Compliances

802.3ab, 802.3z,
802.1Q, 802.1D, 802.1s, 802.3u, 802.3x, 802.3w 802.3af, 802.3at, 802.1p,

Service Compliance

IPv4 Type of Service (TOS)&Differentiated Services (Diff-Serv)
IPv6 Traffic Class

Regulatory



Safety

CE

Environmental

RoHS, WEEE

Environmental



Humidity

0 to 95%, non-condensing

Temperature

Operating: -30°C to +75°C
Storage: -40°C to +85°C

Mechanical



Dimensions

1.2x3.75x5.1 in., 3.0x9.5x13 cm (HxWxL)

Weight

0.76 lb (344 g)

Housing

Aluminum

Optional Accessories



Vi1120: 57VDC, 120W Power Supply



Vi10120: 57VDC, 120W Power Supply



Vi0017: 48VDC, 40W Power Supply



Vi0012: 12VDC, 12W Power Supply for non-PoE Applications
