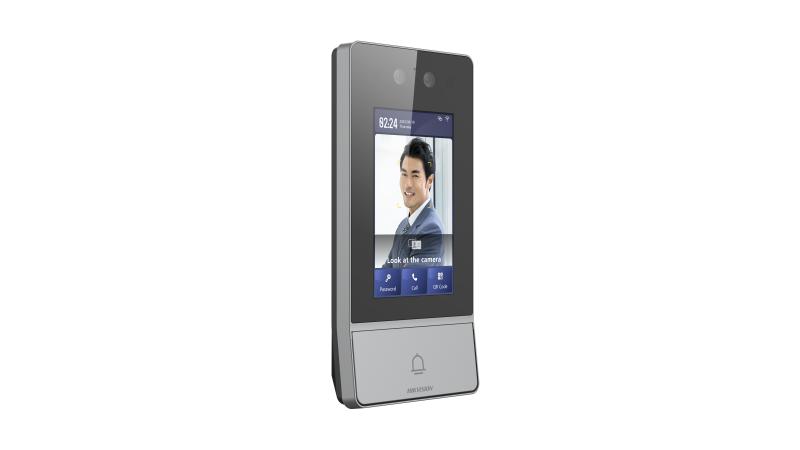

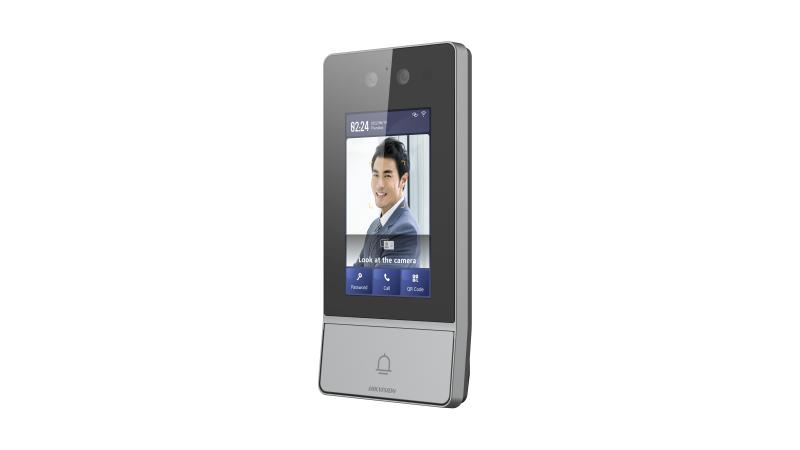

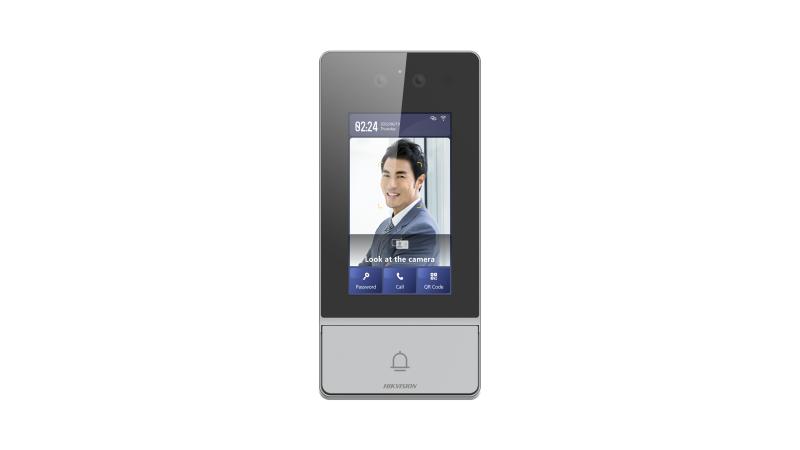

Metal Vandal-resistant Facial Recognition IP Villa Door Station. The KV9 series IP facial recognition villa door station, with a 4.3-inch high resolution touch screen, brings you a more fluent and fit operation. It supports multiple authentication modes, such as face, QR code, card, and buttons, satisfying different environments and helping to use access permissions. The villa door station is powered by the standard PoE, and is no need to wire extra power supply, which is easy for installation and deployment. With high protective level, it is suitable for high-end villa, office, high-end apartment, etc.
Features:
- 4.3-inch colorful LCD screen with 800 × 480 resolution
- 2 × 2 MP camera with IR supplement
- One-touch physical button for easier calls
- Standard PoE power supply
- IK08 & IP65 higher protection level
- Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth
- Call directly to Hik-Connect APP without indoor station
| Specification | |
| System parameters | |
| Operation system | Linux |
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 4.3-inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 × 480 |
| Luminance | 425 cd/m² |
| Video parameters | |
| Lens | 2 |
| Resolution | 2 × 2 MP |
| FOV | Horizontal: 88°, Vertical: 44° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | G.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| User capacity | 20000 |
| Face capacity | 10000 |
| Fingerprint capacity | / |
| Card capacity | 100000 |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network parameters | |
| Network protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Support：2.0 |
| 3G/4G | / |
| Authentication | |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 2 m |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition duration | ＜ 0.2 s per person |
| Device interfaces | |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Reserved |
| Lock control | 2 relays, Max. 30 VDC 2 A, lock 2 needs secure module |
| Door contact input | 2 |
| General | |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight: 0.405 kg Gross weight: 0.752 kg |
| Protective level | IP65, IK08 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
| Battery | / |
| Power supply | 12 VDC, 1.5 A,IEEE802.3af, Standard PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 6 W |
| Language | English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Viet namese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbia n,Greek |
