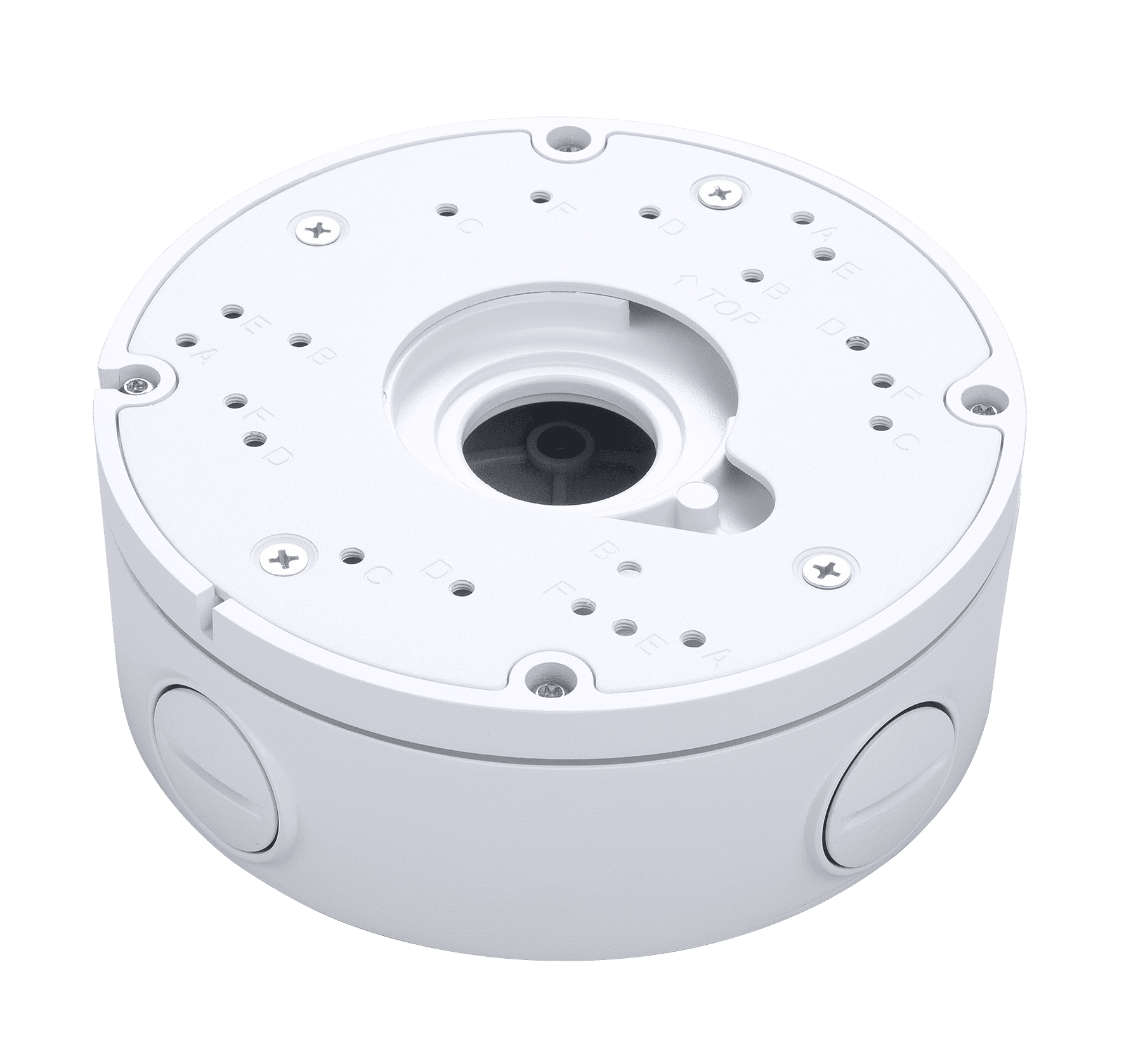

Vivotek - AM-71H_V02 - Outdoor Camera Junction Box with Conduit Openings
Part number:
Price:
- • Outdoor Conduit Box
| Product Specification | |
|---|---|
| P/N | VIO900000059(V01) VIO900000083(V02) |
| Material | Aluminum Alloy |
| Color | White |
| Pipe Thread | 3/4” |
| Dimensions | Ø 141.8 x 51 mm |
| Weight | 457g |
| Box Dimension | 163 (L) x 153(W) x 60 (H) mm (1pc) |
| Box Weight | 634.50g |
| Carton Dimension | 615 (L) x 180(W) x 345 (H) mm (20pcs) |
| Carton Weight | 13.33kg |
| Supported Models | V02：FD9399-EH(T)V, IT9399-H(T)VW, FD9389-EH(T)V-V3, IT9389-H(T)VW-V3 series, FD9383-H(T)V, IT9383-H(T)VW, FD9368, FD9380, FD9360, FD9380-H(T)V-V2 IT9388-HT, IT9380-HTV-V2 FD9389-EH(T)V-V2 TB9332-E, TB9333-E, TT9333-E FE9380-H / FE9382-EHV-v2 / FE9391-EHV-v2 / FE9191-H-v2 |
Name
Description
Size
Downloads
File
Spec_AM-71H_EN.pdf
0.4mb
File
QIG_AM-71H.pdf
0.6mb
