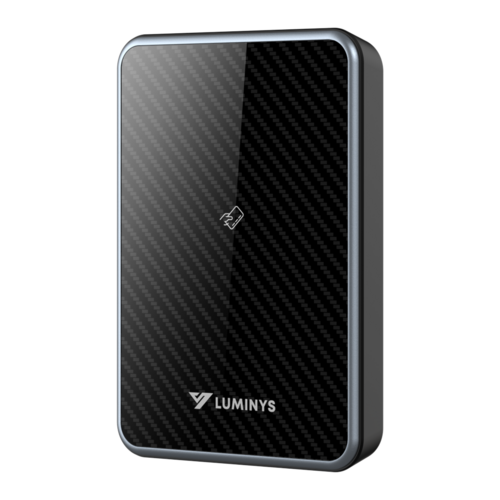

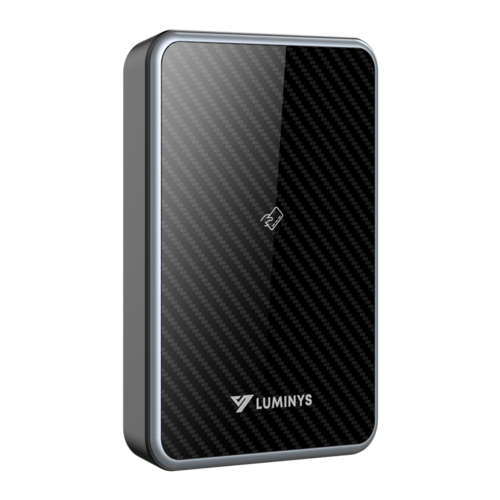

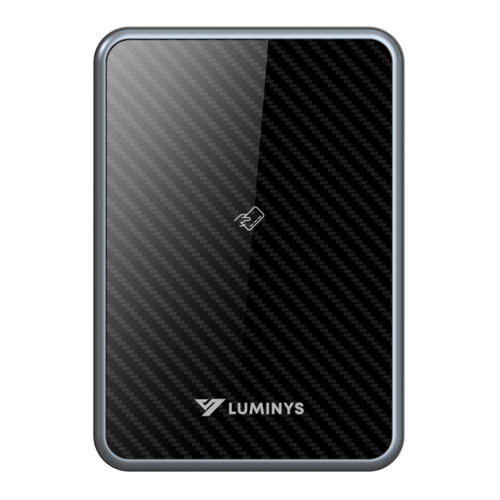

Luminys - RD1CW - Waterproof Access Reader
Part number:
RD1CW
Price:
The RD1CW is part of Luminys’s access control product range. Luminys access control solutions are built for flexibility and scalability and provide reliable, secure access for applications of all sizes.
Key Technologies
IP66 ingress protection ensures protection against dust and heavy rain, making it ideal for outdoor installations and rugged conditions.
Multi-protocol support allows for flexible and secure access control options.
Feedback indicators such as integrated LEDs and buzzers provide real-time audio and visual feedback during user interactions.
Features:
- Read and Issues MIFARE (IC) Cards
- Buzzer and Indicator Light
- IP66 Protection For Indoor and Outdoor Use
- Supports MIFARE (IC) Card
- Supports RS-485 and Wiegand Communication Protocols
- Equipped with Anti-Tampering Alarm
- Surface Mount Design
Certifications and Compliance
- NDAA Compliant
- FCC/FCC ID
- IC/IC ID
| Specification | Details |
| Card Reading Functions | |
| Card Type | IC (MIFARE) |
| Frequency Range | 13.56 MHz |
| Maximum Transmission Power | 42 dBm at 10 m |
| Verification Method | Card |
| Response Time | 0.1 s |
| Card Reading Distance | 0 in. to 2.0 in. (0.0 cm to 5.0 cm) |
| Interface | |
| RS-485 | One (1) Channel |
| Wiegand | One (1) Output Channel |
| Alarm | |
| Event | Tamper |
| Electrical | |
| Power Supply | 12 VDC, 0.5 A |
| Power Consumption | • Standby: ≤ 0.9 W• Working: ≤ 1.7 W |
| Construction | |
| Net Weight | 0.2 kg (0.4 lb) |
| Gross Weight | 0.4 kg (0.8 lb) |
| Product Dimensions (L × W × H) | 5.3 in. × 1.6 in. × 0.6 in.(135.0 mm × 40.0 mm × 15.0 mm) |
| Package Dimensions (L × W × H) | Inner Carton: 7.3 in. × 6.4 in. × 2.8 in.(185.0 mm × 163.0 mm × 71.0 mm)Outer Carton: 22.8 in. × 15.1 in. × 13.7 in.(578.0 mm × 383.0 mm × 349.0 mm) |
| Operating Temperature | -22 °F to 158 °F (-30 °C to 70 °C) 5% to 95% (RH), Non-Condensing |
| Protection Ratings | IP66 |
| Material | PC and Acrylic |
| Installation Method | 86 Case Mount, Surface Mount |
| Certifications and Compliance | |
| Compliance | NDAA, FCC/FCC ID, IC/IC ID |
