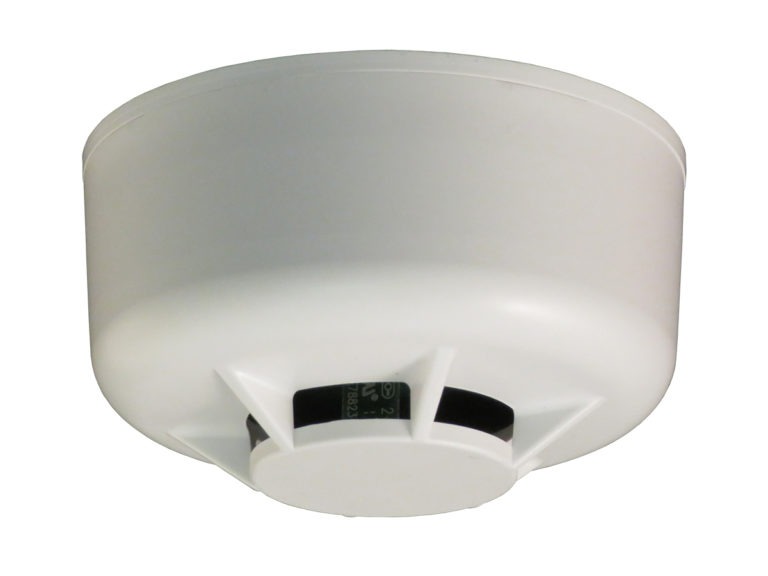

ELK - 319HRR - Wireless Heat Rate of Rise Sensor 319.5MHz
Part number:
319HRR
Price:

The ELK-319HRR is a Supervised, Wireless Heat Sensor. It uses a solid-state thermistor to sample and trigger an event at a selectable setpoint of either 135 or 200 degrees F. It can also trigger an event if the temperature rises 12 degrees F or more during a one (1) minute time period.



This sensor is compatible with Elk’s 319MHz Receivers/Panels as well as many other panels that operate on the 319.5MHz frequency. ELK’s 319 Series Sensors are ideal for Interlogix systems in need of replacement sensors.



Features:

  • Ideal for garages, kitchens, attics, utility closets, etc.
  • Long range and battery life
  • Transmits alarm, tamper, low battery, and supervisory signals
  • Powered by a single CR123 battery



  • Heat Sensor
  • (1) CR123 Battery
  • Mounting Hardware
  • Instructions
RF frequency319.5 MHz
CompatibilityELK-319 Receivers/Panels & other panels that operate on the 319.5MHz frequency
Battery typeOne (1) 3VDC lithium battery
Dimensions2.29” Dia. x 1.28” H (58.25mm x 32.4mm)
Name
Description
Size
Downloads
File
Datasheet
1.8mb
File
Instructions
0.3mb
File
ELK 319 Series Wireless Flyer
2mb
