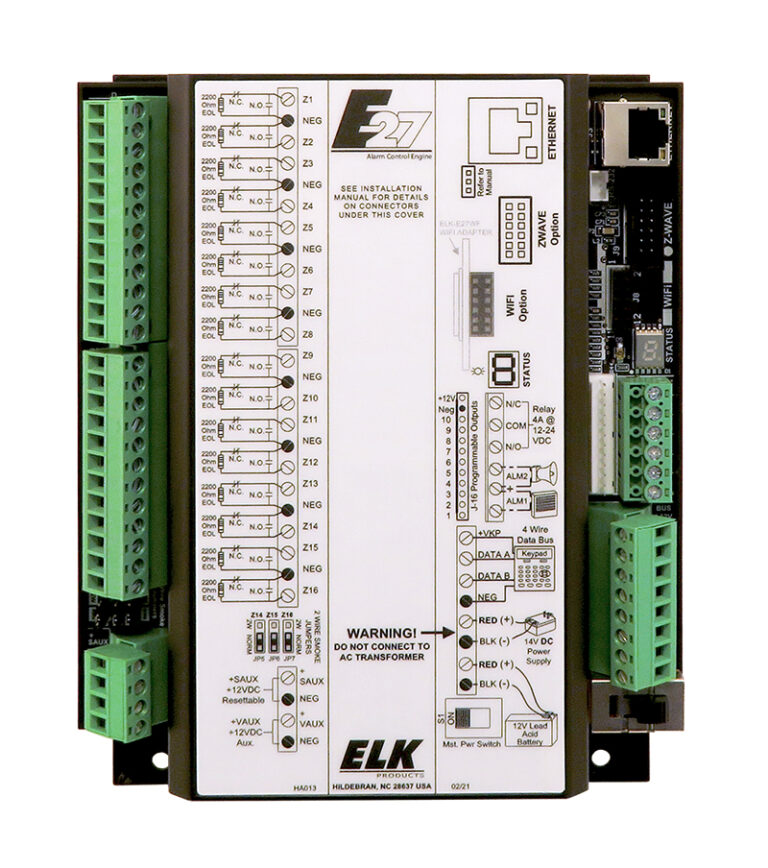

ELK’s E27 Alarm Engine® is a hybrid alarm control for intrusion & safety, supporting both hardwired & wireless sensors.  An on-board Ethernet port & optional Wi-Fi adapter provide secure connectivity with multi-layered authentication & encrypted communications.

E27 offers powerful automation with simplified scheduling & a robust rules engine for unrestricted customization.  Easy integration with Z-Wave devices provides convenient automation & real-time control of lights, thermostats, & locks.

Features:

• Large zone capacity: 16 on-board zones expandable to 128
• Wireless capability: Up to 128 zones, maximum of up to 5 receivers/transceivers total
• Areas/partitions: Up to 8
• Users: Up to 199
• User groups: Up to 10
• On-board Outputs: 2 Alarm Outputs, 1 form "C" relay and 10 voltage (12VDC, 50mA) outputs
• Z-Wave Support: 64 Lights, 8 Door Locks, 4 Thermostats, 4 Garage Doors
• On-board Ethernet port, Wi-Fi Support with optional Wi-Fi adapter
• Flash Memory - Allows field updates to firmware electronically
• Supports 4-wire (any input) and 2-wire (inputs 14, 15, & 16) smoke detectors
• Includes fire alarm verification routine
• Plug-in terminal blocks make service and pre-wires a snap!
• Hardware "watchdog" and nonvolatile EEPROM memory
• Requires ELK-P1426 14VDC 2.6 Amp Power Supply **NOT INCLUDED**
