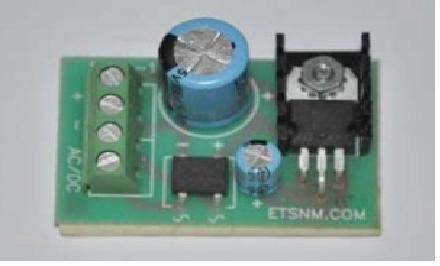

The SVRB-X is a simple, low cost , linear voltage regulator board designed for low current loads using higher available Voltage sources. Ideal for point of use power. It accepts regulated DC, unregulated DC or up to 24V AC power input Voltages. Available in ten different output voltages.

Features:

• Compact size
• Automatic short circuit and thermal shutdown.
• 2 Watt power dissipation
• 1 amp maximum current draw.
• AC or DC (polarity insensitive) voltage input.
• Sticky backed tape Mounting.
• Specify desired output voltage upon ordering.
• Dimensions L1.25 x W1.0

Includes

• SVRB-X voltage regulator board
• Installation instructions

Output ordering options:

SVRB-3.3 SVRB-5 SVRB-6 SVRB-8 SVRB-9 SVRB-10 SVRB-12 SVRB-15 SVRB-18 SVRB-24 SVRB-X, where X = desired output voltage
