100 FX Media Converter
The 10/100Base-TX to 100Base-FX IFT-80xT series media converter at Planet Technology for industries is able to lengthen the distance for communication with stability through fiber optic wire.
The distance for extension can be lengthened up to 2km by the IFT-802T unit and to 15 km with the IFT-802TS15 model. It can also be extended further, up to 20km, with the IFT-805AT, depending on the SFP module.

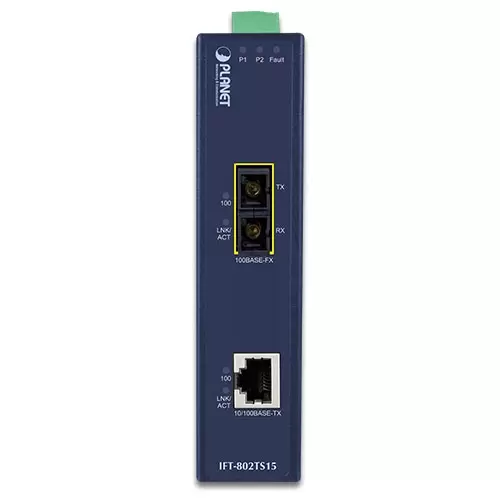

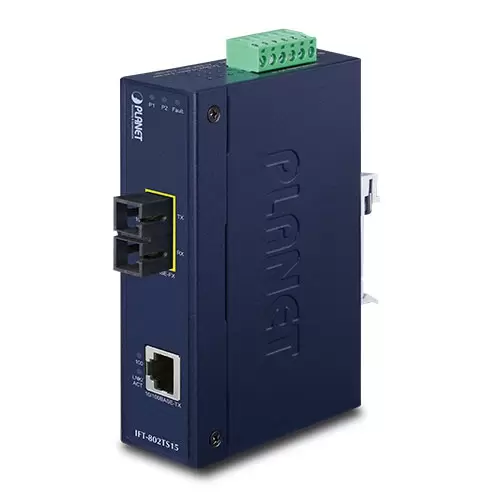

This series is truly durable and was crafted to last any environment. The strong casing allows this unit to operate with ease in climates that are demanding and harsh. The IFT-80xT series converter from Planetechusa.com offers a resistance to electrical interference which can be found on the floors of plants or in cabinets on street sidewalks that contain traffic control devices. This series is also able to operate easily in extreme temperatures, from -40 to 75°C. The IFT-802TS15 is a 10/100Base-TX to 100Base-FX IFT-80xT series media converter that works in extreme temperatures.
Features:
- Speed: 10/100TX to 100FX
- Mode: Single Mode
- Wavelength: 1310nm
- Distance: 15km
- Fiber Connection: SC
- Operating Temperature: -40° to 75°C
- TAA Compliant
| Hardware Specifications | |
| 10/100Base-TX Port | 1 RJ-45 auto-MDI / MDI-X port |
| 100Base-FX Port | IFT-802T: 1 SC interface IFT-802TS15: 1 SC interface IFT-805AT: 1 SFP slot |
| Fiber Port Type | IFT-802T: SC / multi-mode IFT-802TS15: SC / single-mode IFT-805AT: Vary on module |
| Cable Distance | IFT-802T: 2km IFT-802TS15: 15km IFT-805AT: Vary on module |
| Optical Frequency | IFT-802T: 1310nm IFT-802TS15: 1310nm IFT-805AT: Vary on module |
| Launch Power (dBm) | Max IFT-802T: -14 IFT-802TS15: 0Min IFT-802T: -20 IFT-802TS15: -20Vary on module IFT-805AT |
| Receive Sensitivity (dBm) | IFT-802T: -32 IFT-802TS15: -32 IFT-805AT: Vary on module |
| Maximum Input Power (dBm) | IFT-802T: -14 IFT-802TS15: 0 IFT-805AT: Vary on module |
| Dimensions (W x D x H) | 135 x 85 x 32 mm |
| Weight | 430g |
| Installation | DIN rail kit and wall mount ear |
| Maximum Frame Size | 1522bytes packet size |
| Flow Control | Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Enclosure | IP-30 slim type metal case |
| LED Indicator | System: Power 1 (Green) Power 2 (Green) Fault (Green) 1 x copper port: 10/100 (Green) LNK/ACT (Green) 1 x 100FX port: 100 (Green) LNK/ACT (Green) |

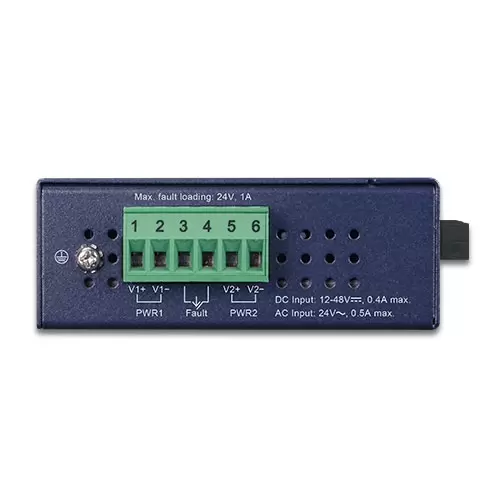

| Power Input | 12 to 48V DC, redundant power input with polarity reverse protection |
| Power Consumption | 3 watts/ 10BTU (maximum) |
| Protection | ESD (Ethernet): 6KV DC Surge (Power): 6KV DC |
| Speed | Twisted-pair: 10/20Mbps for half / full-duplex 100/200Mbps for half / full duplex Fiber-optic: 200Mbps for full-duplex |
| Network cables | 10/100Base-TX: 2-pair UTP Cat. 3, 4, 5 (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.) 100Base-FX: IFT-802T: Multi-mode optical fiber 62.5/125μm / 50/125μm (2km) IFT-802TS15: Single-mode optical fiber 9/125μm (15km) IFT-805AT: SFP slot (depending on SFP module) |
| Standards Conformance | |
| Emissions | FCC Class A, CE Class A |
| Standards Compliance | IEEE 802.3 10Base-T IEEE 802.3u 100Base-TX / 100Base-FX IEEE 802.3x flow control and back pressure |
| Stability Testing | IEC60068-2-32 (Free Fall) IEC60068-2-27 (Shock) IEC60068-2-6 (Vibration) |
| Environment | |
| Operating Temperature | -40~75 degrees C |
| Operating Humidity | 5~90% non-condensing |
| Storage Temperature | -40~85 degrees C |
| Storage Humidity | 5~90% non-condensing |
