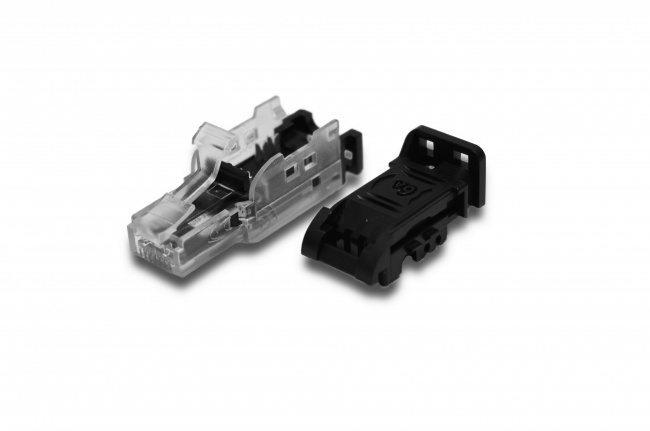

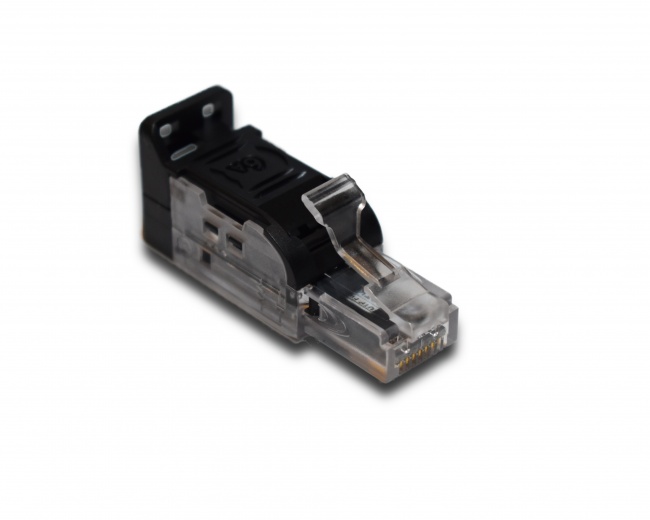

The 106260 CAT6A-rated PoE++ connector features a simple 2-piece design and only requires basic wiring tools to terminate in the field. Compatible with cables ranging from 6.0mm to 8.5mm and conductor sizes of 26 AWG to 23 AWG. This connector is compliant with CAT6A/CAT6/CAT5e requirements as well as the PoE++ type 4 standard up to 90W.

Features:

• CAT6A/CAT6/CAT5e certified for Patch and Permanent Link
• PoE Type 4 rated (Up to 90W)
• 2-piece design with minimal tools required for field terminations
• Meets ANSI/EIA/TIA/TAA specifications
• IDC Terminal-style contacts for wide range of conductor sizes.
• Compatible with 26AWG to 23AWG solid-round or stranded wire
