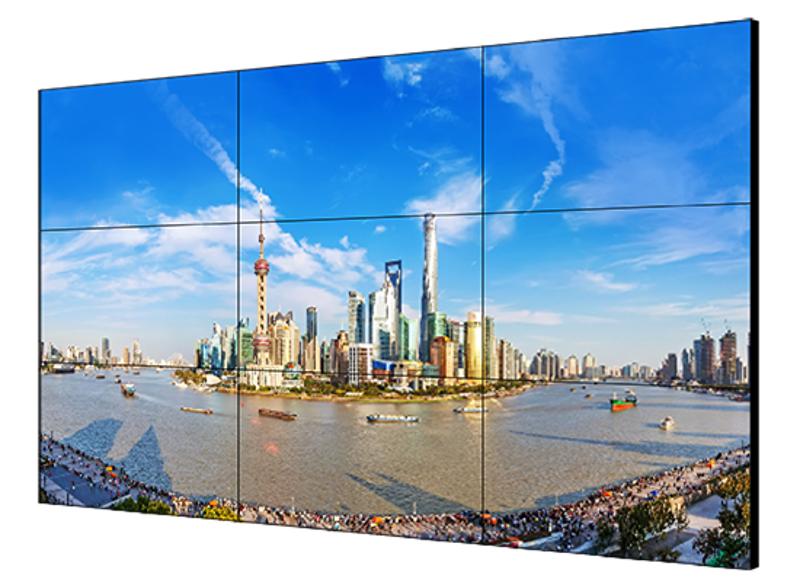

Hikvision - DS-D2055LE-G - 55-inch 1.8mm LCD Display Unit
Part number:
DS-D2055LE-G
Price:
55-inch 1.8mm LCD Display Unit. The DS-D2055LE-G LCD display uses an industry-level extreme-narrow bezel design, which enables a bezel width of 1.8 mm between neighboring displays. The adopted direct-lit LED backlighting technology helps achieve ultra-high and uniform brightness of 500 cd/m² without boundary shadows. The display has abundant interfaces for video inputs, such as DVI, VGA, HDMI, and DP.
Features:
- 4K signal input, auto loop up to 30 screens with HDMI interfaces
- Switching between three picture modes: Monitoring, Meeting, and Movie
- Factory calibration for color and brightness uniformity
- Direct-lit LED backlight with uniform brightness and no boundary shadows
- 1920 × 1080 resolution, 178° viewing angle
- Extreme-narrow 1.8 mm bezel design
- Anti-glare, high definition, high brightness, high color gamut, and vivid images with rich colors
- Stable and 24-hour continuous working
- Metal casing for preventing from radiation and magnetic & electric field interference
- Wall-mount and modular brackets available to meet various installation requirements
| Display | |
| Screen Size | 55 inch |
| Active Display Area | 1209.6 (H) mm × 680.4 (V) mm |
| Backlight | Direct-lit LED backlight |
| Pixel Pitch | 0.63 mm |
| Physical Seam | 1.8 mm |
| Bezel Width | 1.3 mm (top/left), 0.5 mm (bottom/right) |
| Resolution | 1920 × 1080@60 Hz (downward compatible) |
| Brightness | 500 cd/m² |
| Viewing Angle | Horizontal 178°, vertical 178° |
| Color Depth | 10 bit, 1.07 B |
| Contrast Ratio | 1200:1 |
| Response Time | 8 ms |
| Color Gamut | 72% NTSC |
| Surface Treatment | Haze 28%, 2H |
| Interface | |
| Video & Audio Input | VGA × 1, HDMI × 1, DVI × 1, DP × 1, USB × 1 |
| Video & Audio Output | HDMI × 1 |
| Control Interface | RS232 IN × 1, RS232 OUT × 1 |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 245 W |
| Standby Consumption | ≤ 0.5 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% RH to 80% RH (non-condensing) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 10% RH to 90% RH (non-condensing) |
| General | |
| Casing Material | SGCC |
| VESA | 600 (H) mm × 400 (V) mm |
| Product Dimension (W × H × D) | 1212.21 (W) mm × 683.06 (H) mm × 69.3 (D) mm (47.72'' × 26.89'' × 2.73'') |
| Package Dimension (W × H × D) | 1404 (W) mm × 910 (H) mm × 231 (D) mm (55.3'' × 35.8'' × 9.1'') |
| Net Weight | 20.5 ± 0.5 kg (45.2 ± 1.1 lb) for single display |
| Gross Weight | 39.1 ± 0.5 kg (86.2 ± 1.1 lb) for carton with a single display |
Packing List | Carton with a single display: LCD display × 1, power cable × 1, network cable × 1, 2-meter HDMI cable × 1, screw × 4, remote control × 1, IR receiver × 1, RS-232 converter × 1, quick start guide (multilingual) × 1, quick start guide (English) × 1 |
