Cyber Power - BP48VP2U02TAA - Extended Battery Pack for PR1500RTXL2UTAA / PR2000RTXL2UTAA / PR3000RTXL2UTAA
Part number:
BP48VP2U02TAA
Price:

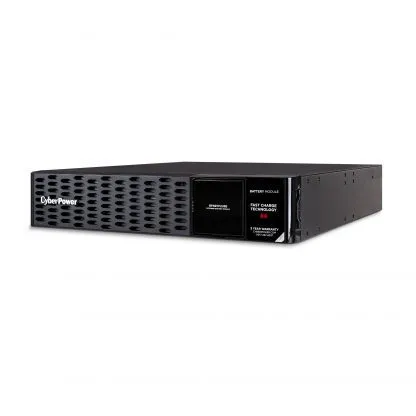

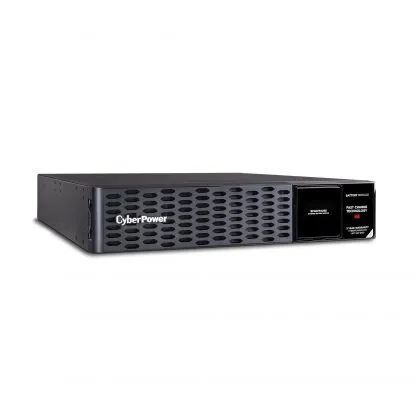

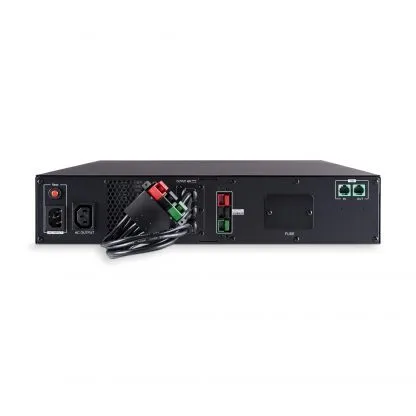

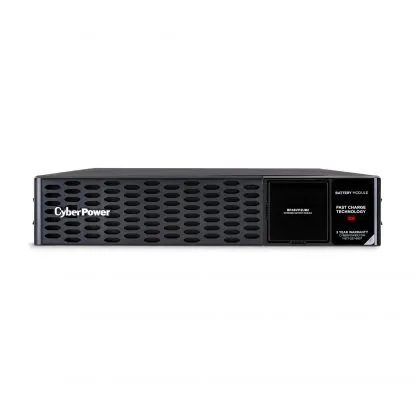

The CyberPower BP48VP2U02TAA is a rack/tower convertible Extended Battery Module (EBM) that extends battery runtimes during power outages and is designed for the following Smart App Sinewave UPS systems: PR1500RTXL2UTAA, PR2000RTXL2UTAA, PR3000RTXL2UTAA.
This EBM takes 2U of rack space and can be installed in either a rack or tower configuration to match the UPS form factor. Battery equalization technology improves battery life, and toolless battery panel access makes battery replacement fast and simple.
With a three-year lifetime limited warranty, you can trust CyberPower’s commitment to the quality of the BP48VP2U02TAA.
Features:
- Extended Battery Module: Expands runtime and quickly restores full backup power with Fast Charge Technology.
- Battery Equalization Technology: Battery Equalization is an advanced charging process that maintains the voltages of the batteries at the same level to increase battery life.
- Fast Charge Technology: Allows UPS batteries to return to full capacity more rapidly by using a built-in charger inside of each UPS or EBM.
- Toolless Battery Panel Access: Makes battery replacement fast and simple. The faceplate features side latches for easy removal, and captive screws can be loosened by hand to open the battery cover.
- Hot-Swappable Batteries: Eliminates power-related downtime and ensures maximum power availability. All potential UPS maintenance, including complete power module exchange, can be performed without powering down connected equipment.
- Rack/Tower Configuration: Allows for horizontal rack or vertical tower installation.
- Three-Year Warranty: Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
- What’s in the box: Extended Battery Module, Faceplate, User Manual, Rack Mounting Kit, Tower Mounting Kit, BM Cable, and (2) IEC C13-C14 Cables
| General | |
| Amperage | 70 A |
| DC Voltage | 48 VDC |
| Battery | |
| Battery Quantity | 8 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Built-in Charger | Yes |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Replacement Battery Cartridge Quantity | 2 |
| Typical Recharge Time | 6 Hours |
| User Replaceable Battery | Yes |
| Input | |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Input Voltage Range | 100 VAC – 240 VAC |
| Output | |
| USB Charge Port | No |
| Physical | |
| Color | Black |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.43 x 8.64 x 50.04 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17.1 x 3.4 x 19.7 (in) |
| Physical Dimensions – (WxHxD) (mm) | 434 x 86 x 500 (mm) |
| Physical Weight (kg) | 30.03 |
| Physical Weight (lb) | 66.2 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 11 |
| Shipping – Weight (lb) | 24.25 |
| Shipping Dimensions – (WxHxD) (cm) | 55.88 x 26.67 x 61.6 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 22.0 x 10.5 x 24.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 558.8 x 266.7 x 615.95 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 95 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE |
| RCM | |
| UL1778 | |
| cUL | |
| FCC Class B | |
| VCCI | |
| Warranty | |
| Extended Warranty Option | WEXT5YR-BP1 |
| Product Warranty | 3 Year Limited Warranty |
