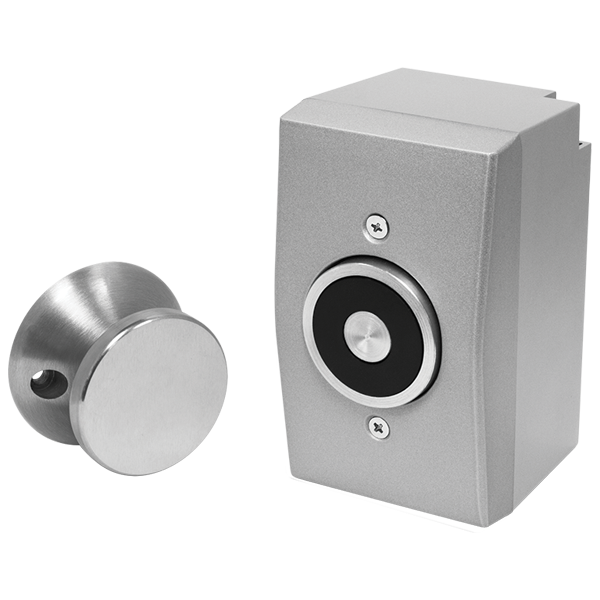

SECO-LARM - DH-151SQ - Magnetic Door Holder – Surface-Mount, UL Listed
Part number:
DH-151SQ
Price:

Magnetic Door Holder, Surface-mount with backbox, UL listed, adjustable armature plate, fail-safe operation, holding force 33-lbs (15kg), three voltages: 12VAC/VDC, 24VAC/VDC, 120VAC, extension bars available: ½”, ¾”, 1”, 2”... cast aluminum faceplate, built-in voltage spike suppressor.



The UL Listed SECO-LARM Magnetic Door Holders are designed for virtually any remote door release applications, whether residential or commercial. Fail-safe operation, tri-volt coils, and adjustable armature plate allows for easy and flexible installation.



Features:

  • For use with door closers to control the release and closing of residential, commercial, and public area doors
  • Adjustable armature plate reduces installation time and adjusts to door alignment changes
  • Low profile design
  • Holding force – 33-lb (15kg)
  • 3 voltages: 12/24 VAC/VDC, and 120VAC
  • Cast aluminum faceplate
  • No residual magnetism for easy release
  • Built-in voltage spike suppressor
  • Use with SECO-LARM door closers
  • Optional extension bars available: 3/4″, 1″, 4″, 7″ (19mm, 25mm, 102mm, 178mm)
  • Use with SECO-LARM door closers SD-C121-S, SD-C131-SQ, SD-C101-SGQ, or SD-C101-SBAQ
Holding Force33-lb (15kg)
InstallationSurface-mount
Operating Voltage12/24 VAC/VDC, 120VAC
Current Draw52mA@12VAC, 60mA@12VDC, 27mA@24VAC, 31mA@24VDC, 24mA@120VAC
Magnet Box Weight1-lb 6.4-oz (920g)
Door Armature Weight8.1-oz (230g)
Electromagnet Dimensions2-3/4″ x 4-9/16″ x 3″ (70 x 116.5 x 76 mm)
Armature Dimensions2-9/16″ x 2-9/16″ x 1-9/16″ (65 x 65 x 40 mm)
