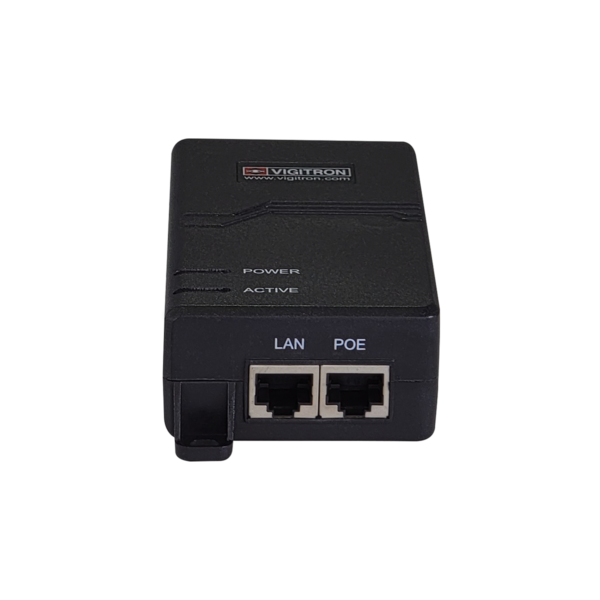

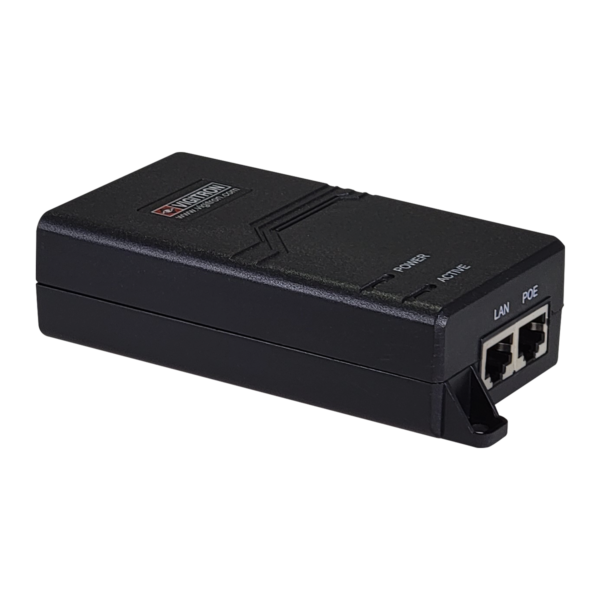

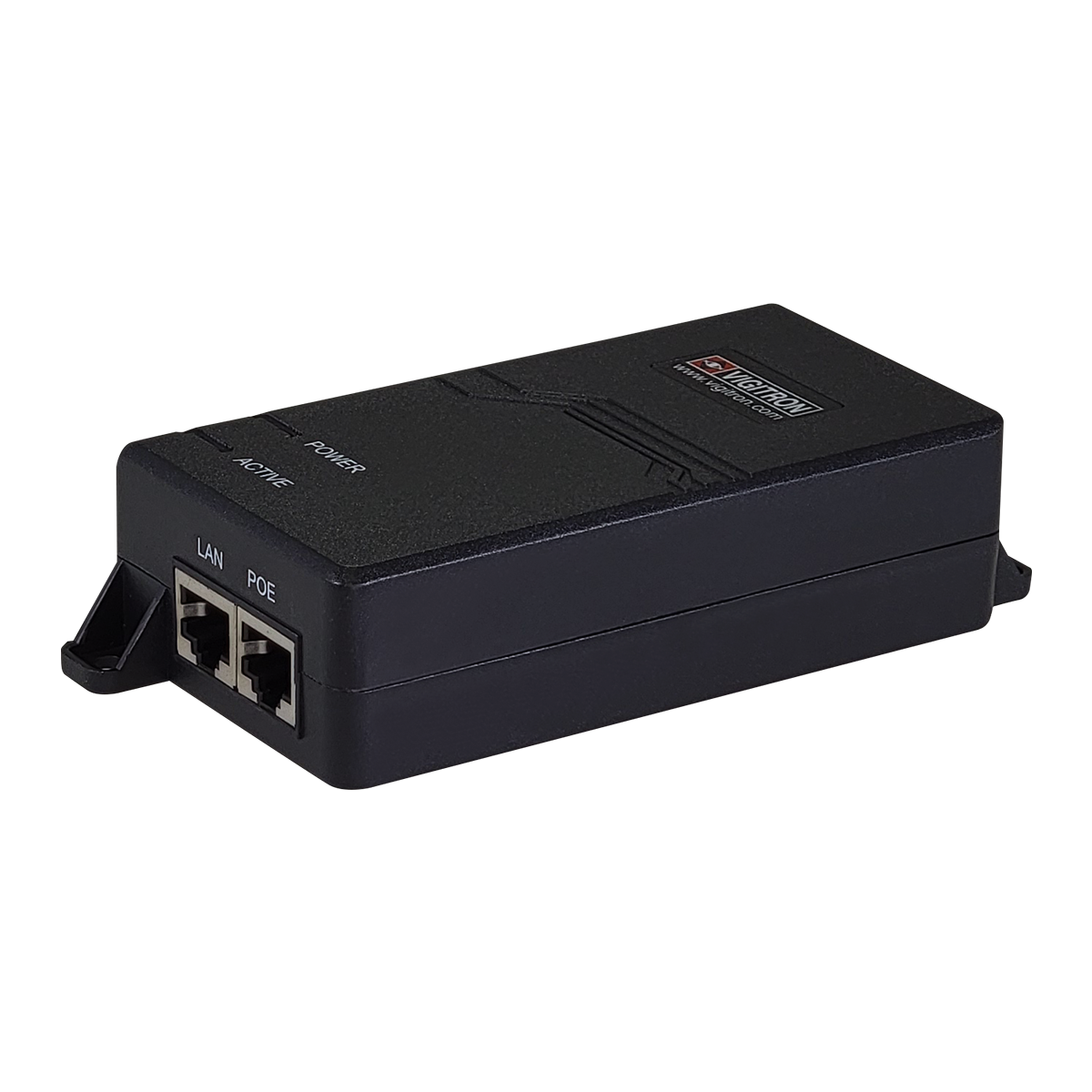

Vigitron - Vi2201 - 1-Port MaxiiPower™ af/at 30W PoE Midspan w/ built in power supply
Part number:
Vi2201
Price:

Vigitron’s MaxiiPower Vi2201 is a high power single port Midspan compliant to IEEE 802.3af/at. It is a cost effective solution for powering a wide range of IP cameras that offers all standard PoE safety features including detection, connection/disconnection and fault protection. With a transmission bandwidth of up to 1Gbps, its application has virtually no bandwidth limitations and interfaces with the highest megapixel cameras.



The Vi2201 includes a built-in power supply and does not require an external power supply. The Vi2201 is compact size, easy to install and ideal for using in environmental enclosures or other space restricted applications.



The Vi2201 complies with all network transmission standards and is an ideal solution for powering any PoE device that requires high power PoE.



Features:

  • Cost-effective single port IEEE 802.3at compliant 30W PoE power supply for 10/100/1000Base-T networks
  • Built-in 30W power supply
  • Delivers up to 30W for high power applications
  • Complies with IEEE 802.3 safety standards for automatic detection and over-current protection
  • Provides high data rate and power for Megapixel IP camera applications
  • Tested to RFC 2544 packet transmission standards
  • Compact design
Specification
Electrical
Ethernet InterfaceStandard 10/100/1000-BaseT
UTPCategory 5 (or higher)
PoE Output30W @ 53V DC
Input Power100-240VAC, 50/60Hz
Status LEDsPower
PoE Active
PoE Power Pins4&5 (+), 7&8 (-)
ConnectorsData: Shielded RJ-45
Data & PoE: Shielded RJ-45
Main Power: IEC 320 C5
ManagementAuto PoE Detection
Regulatory
FCCPart 15, Subpart B, Class B 2010
SafetyCE
EnvironmentalRoHS, WEEE
Environmental
Humidity0 to 95%, non-condensin
TemperatureOperating: 0°C to +40°C
Storage: -10°C to +70°C
Mechanical
Dimensions4.53 x 2.45 x 1.32 in., 115 x 62 x 34 mm (LxWxH)
Weight0.42 lb (190g)
MaterialABS plastic, UL rating of 94V-0
Accessories
Molded IEC 7 ft. (200cm) Power Cord (included)
